2/08/2010: Maiden Flight of the Boeing 747-8F

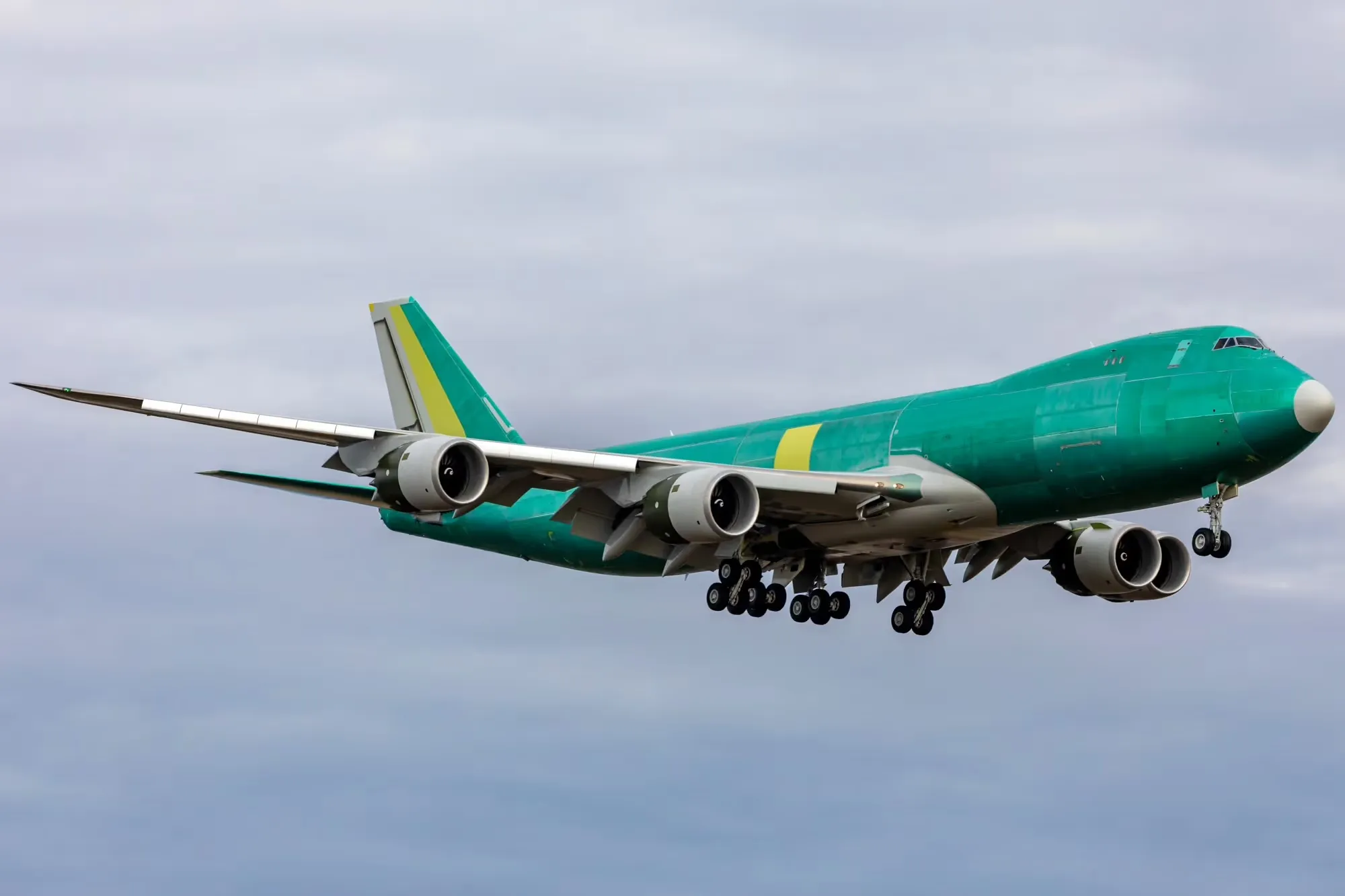

DALLAS — Today, in 2010, the Boeing 747-8F performed its maiden flight after completing its high-speed and taxiing tests.

Intending to design and manufacture a worthy replacement for the Boeing 747-400 in all its variants, the company had already accumulated a series of ideas at the end of the 90s for the new line of the more famous Jumbo Jet. The idea was to present Stretch versions to compete with Airbus's A3XX proposal, which later became the A380.

Boeing's goal was to launch a 747X and a 747X Stretch, much more functional than any 747 in the -400X, -500X, -600X, and -700X versions.

The Boeing 747X would have been 70.6 meters long, with a wingspan increased to 69.8 meters by adding a segment at the root. Maintaining the same 6.5-meter width of the fuselage and the same maximum height of 19.4 meters, the 747X could carry 430 passengers for an impressive 16,100 km (8700 NMI).

As for the Boeing 747X Stretch, while maintaining the same wingspan, width, and height as the 747X fuselage, the length was increased to 80.2 meters, allowing it to carry up to 520 passengers for more than 14,400 km (7,800 NMI).

Finally, two engines were planned: the Engine Alliance GP7200 (the engine of the A380) and the Rolls-Royce Trent 600. A cargo version was also designed for the 747X.

2005 Launch

After rumors of a possible 747X development program, Boeing announced in early 2004 that plans for a 747 Advanced had begun. Similar to the 747X, the Advanced series would use the technology tuned for the 787 DREAM)LINER to make the design more modern. On November 14, 2005, Boeing announced that it was launching the production of the 747 Advanced under the name 747-8.

Boeing did not take the evolution of the project for granted because, at that time, only Lufthansa (LH) had the 747-8i on order. In October 2009, Boeing announced a delay to the first flight 747-8F until the first quarter and consequently delayed its delivery. Due to this delay, Boeing announced a loss of US$ 1 billion.

Net of this loss, Cargolux Airlines (CX), the launch customer of the -8F program, confirmed its order for 13 units, and LH confirmed its commitment to the passenger version.

On November 12, 2009, Boeing finally announced the rollout of the first 747-8F, which was immediately sent to the paint shop at the company's Everett plant. On December 4, 2009, Korean Air (KE) became the second airline to order the 747-8i with an order of five units. KE also announced an order for two cargo models in March 2011.

On April 21, 2010, Jim McNerney announced that Boeing was accelerating production of the 747 and 777 variants to support the growing demand.

Flight Tests, Certifications

The Boeing 747-8F completed track engine tests in December 2009 and, on February 7, 2010, completed high-speed and taxiing tests. The second test flight took place in late February with a transfer flight to Moses Lake to test its new navigation equipment. By March 11, 2010, the Boeing 747-8F had completed 13 flights for 33 hours.

Also, on March 15 of that year, the second Boeing 747-8F made its first test flight at Paine Field (BFI), where it was briefly stationed before moving to Palmdale to continue flight tests with the prototype. On March 17, the third -8F joined the test program with its first flight.

On April 19, 2010, the second aircraft was moved from Moses Lake to Palmdale to conduct tests on the aircraft's engines in preparation for the aircraft's certification. On June 3, a tow vehicle damaged the nacelle of an engine without causing any damage to the power plant itself.

On June 14, 2010, the Boeing 747-8F completed the initial flight test phase, and the FAA initiated an extensive certification check for the aircraft. By the end of June that same year, the three -8Fs employed in Boeing's flight test program had totaled 500 flight test hours and completed high-temperature endurance tests in Arizona.

At the same time, Boeing claimed that a fourth 747-8F was required to complete the tests, thus opting for the second production aircraft in CX livery to conduct non-instrumental tests. On August 21, 2010, in Victorville, California, the 747-8F was tested for take-off outside the maximum weight: the aircraft took off despite weighing 455,680kg, compared to a certified maximum weight of 442,253kg.

Lastly, following further delays on August 19, 2011, the FAA and EASA jointly issued the homologation certificate for the Boeing 747-8F.

Technical Features

Not meeting expectations, the Boeing 747-8 created discontent among the ordering parties. To remedy this and to create a renewed pull toward the aircraft, Boeing rolled out a package of improvements under the "Ozark Project" moniker in mid-2014. Some improvements were introduced in the first years, while others would be released according to market needs. These included:

• Engines: These have benefited from the PIP package, or Performance Improvement Package, which, thanks to an update of the electronic engine management, improvements to the fluid dynamics in the AP (high pressure) compressor and BP (low pressure) turbine, and new ice bleed valves, consume less fuel and eliminate the formation of ice during the crossing of clouds in the cruise flight;
• Autonomy: Thanks to the activation of the tanks in the queue, the autonomy of the type rose to 15,200 km;
• Avionics: Improvements to the display system and flight management software gave way to a more efficient cruise altitude climb and more precise navigation;
• MTOW: savings of approximately 5,440 kg thanks to structural improvements
• Consumption: thanks to the PIP package, fuel consumption improved by 1.8%, which, combined with weight reduction and structural improvements, has increased efficiency by 3.5%.

Extra Specs

With a maximum take-off weight (MTOW) of 448,000kg, the aircraft guaranteed a payload of 140,000kg and a range of 8,130km. Compared to its predecessor, the Boeing 747-400F, it can carry four more pallets on the main deck and three more pallets on the lower deck. Furthermore, Boeing says the 747-8F guarantees savings of approximately 16% on the running cost per ton/mile.

The type was 76.25 meters long, making it the longest commercial aircraft in the world, surpassing the Airbus A340-600, which is 75 meters long. The length record was later beaten by the Boeing 777-9x, which is 77 meters long.

The height of the Boeing 747-400F is 19.4 meters, and it has a wingspan of 68.45. The empty plane weighs 295,000kg, and the MTOW weighs 448,000kg. The type is powered by four GE GEnx 2B-67/2B67-B/2B67-P thrusters.
